Ergonomic workstation for ophthalmologists
HSM 600

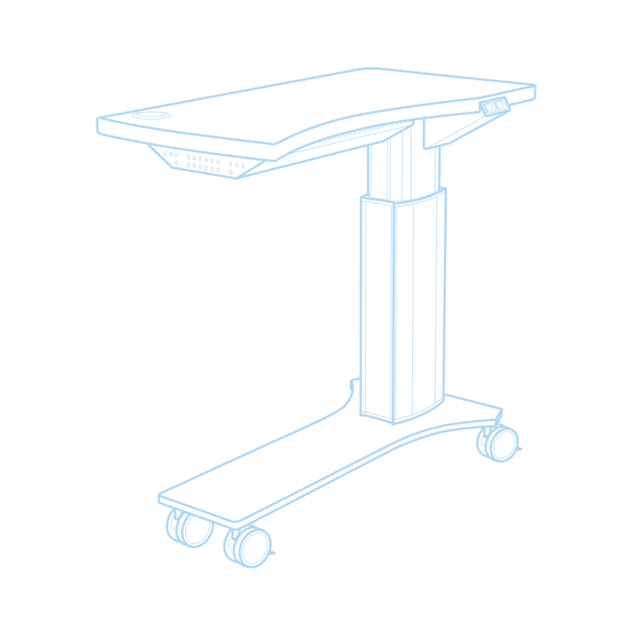

The HSM 600 is a modern instrument table that meets the
high demands of a workstation for ophthalmologists.
The asymmetrical, ergonomic design enables comfortable
examinations and wheelchair accessibility while maintaining a small footprint.
Compare our products
| HSM 600 for Slit Lamp small | HSM 600 for Slit Lamp large | HSM 600 for BX 900 | HSM 600 for Lenstar | HSM 600 for Octopus 900 | HSM 600 for Octopus 600 | |
|---|---|---|---|---|---|---|
| Voltage | ||||||
| 230V or 120V | 120 or 230 | 120 or 230 | 120 or 230 | 120 or 230 | 120 or 230 | 120 or 230 |
| Accessories | ||||||
| LAN cable through column | ○ | ○ | ○ | ○ | ○ | ○ |
| Features | ||||||
| Wheelchair accessibility | ● | ● | ● | ● | ● | ● |
| Storage shelf | ○ | ○ | ○ | ○ | ○ | ○ |
| Bracket for PC | ○ | ○ | ○ | ○ | ○ | ○ |
| Castors | ● | ● | ● | ● | ● | ● |
| Dimensions | ||||||
| Dimensions of tabletop (mm / inch) | 860 x 440 mm / 33.86 x 17.32 inches | 1150 x 440 mm / 45.27 x 17.32 inches | 1150 x 440 mm / 45.27 x 17.32 inches | 1150 x 440 mm / 45.27 x 17.32 inches | 1080 x 480 mm / 42.52 x 18.9 inches | 560 x 640 mm / 22 x 25.6 inches |
| Height (min, max in mm / inch) | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches | 616 / 870 mm / 24.25 / 34.25 inches |
| Weight (kg / lbs) | 48 kg / 105.82 lbs | 51 kg / 112.43 lbs | 53 kg / 116.85 lbs | 51 kg / 112.43 lbs | 57 kg / 125.66 lbs | 29 kg / 63.93 lbs |
| Technical data | ||||||
| Lifting capacity (kg / lbs) | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs |
● standard | ○ optional | − not available | □ not recommended
