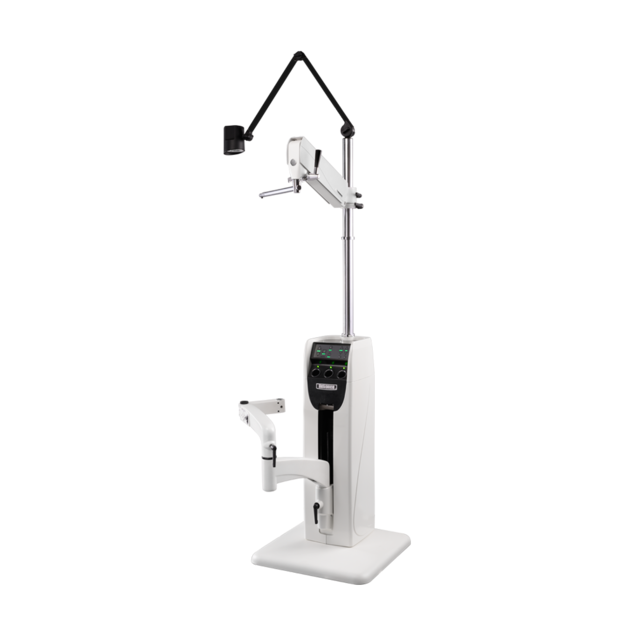

7900 Instrument Stand

Contemporary design to match your Reliance chair

The Reliance 7900 instrument stand has been the benchmark in ophthalmic instrument delivery systems for over a decade. Its polycarbonate, contemporary design is scratch- and scuff-resistant, helping to maintain its look and value. The 7900 is designed to conveniently deliver multiple instruments to the patient while maintaining a small yet stable footprint. Offered with the option of including instrument console charging wells (7900 IC) or no charging wells (7900 NC), all 7900 stands are built for wheelchair (WC) accessibility. No matter your exam room needs, we have a model to meet your requirements.
01 Product information 02 Downloads

Sleek design for maximum patient access

Features—the slit lamp arm

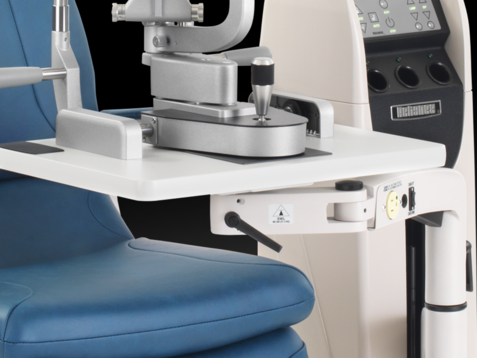

Switch and electric

  • A chair control rocker switch just below the slit lamp provides a convenient method to adjust the patient positioning for a more comfortable experience
  • Mechanical, counter-balanced arm provides smooth slit lamp height adjustment without the need for electrical controls
  • Supports 12 – 60 lbs. for safe slit lamp positioning
  • An electrical outlet just below the slit lamp allows for improved cord management
  • Rotation locks at 3 pivot points provide critical security for a stable examination
  • Range of vertical travel is 12”
  • The arm easily rotates out of the way for space saving instrument storage

Features—the refractor arm

Upper (refractor) arm

  • Designed for a smooth and effortless delivery of your refractor to the patient
  • The counter-balanced arm is able to support up to 20 lbs.
  • Range of vertical travel is 10”
  • A quick-release collar supporting the arm allows for lowering the arm to meet wheelchair-bound patients
  • A convenient channel on top of the arm provides for better cable management for automated refractors

Features—overhead lamp

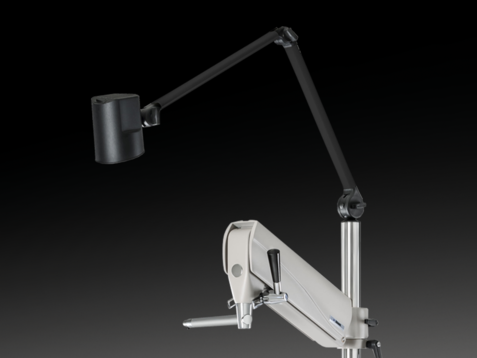

Halogen overhead lamp

  • Low-voltage halogen bulb with a frosted lens for diffused lighting
  • Can easily adjust to use as a patient reading lamp
  • Convenient on/off switch located on the lamp housing
  • Additional controls for on/off and dimming located on the stand console

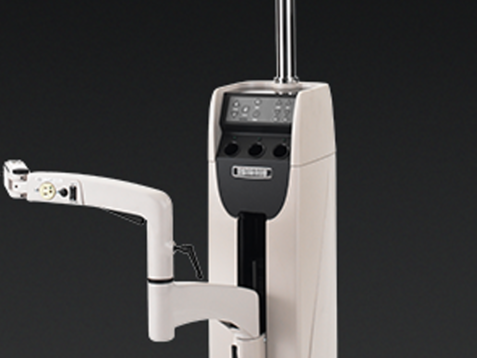

Features—console controls and features

Backlit, membrane switches control

  • Power on/off to entire stand (standby)
  • Chair up/down and automatic return to home
  • Overhead lamp on/off and dimming
  • Chart projector on/off
  • Third instrument arm on/off
  • Indirect ophthalmoscope power on/off
  • Eclipse ® Room lights on/off and dimming, optional
  • Three charging wells for handheld instruments (IC stand only)
  • Continuous low-voltage charging to the instrument wells (IC stand only)

Features—wheelchair accessibility (WC)

  • Standard on all new Reliance 7900 instrument stands
  • Slit lamp arm is designed for a lower positioning of the slit lamp
  • A quick-release handle on the refractor arm for greater reach to meet patient needs
  • Paired with a Reliance chair mover, your purchase may qualify for the Americans with Disabilities Act (ADA) tax credit*

*Please consult your tax advisor to see if you qualify

Option—third instrument arm

  • Includes a convenient electrical outlet for better cord management
  • Counter-balanced to support instruments weighing up to 50 lbs.

Option—eclipse room light controls

  • Works via an infrared signal from the stand to the room light control wall switch
  • Programmable to your lighting needs
  • Can be linked to the charging wells, indirect ophthalmoscope, and delivery of the slit lamp



The Model 7900 is ETL certified to the International Electrical Standard IEC 60601-1 for general safety standards, assuring compliance to International Standards and its quality and safety for you and your patients.
