Périmétrie
Octopus 900
Perímetro estático y cinético de campo completo

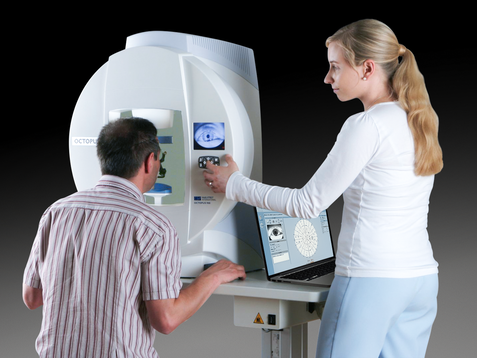

Octopus 900 ofrece todo lo que se puede pedir de un perímetro en un solo dispositivo: perimetría estática y cinética de campo completo, un análisis de progresión sensible y fácil de leer, y la capacidad de integrarlo en una red existente mediante el software EyeSuite.
Ensayos de campo visual sin límites
| Octopus 900 Basic | Octopus 900 Pro | |
|---|---|---|
| Stimulus projection | ||
| Stimulus size (Goldmann) | I - V | I - V |
| Max stimulus intensity | 10000 asb | 10000 asb |
| Test methods | ||
| Blue-on-yellow (SWAP) | ○ | ● |
| Flicker | ○ | ● |
| Red Stimuli | ○ | ● |

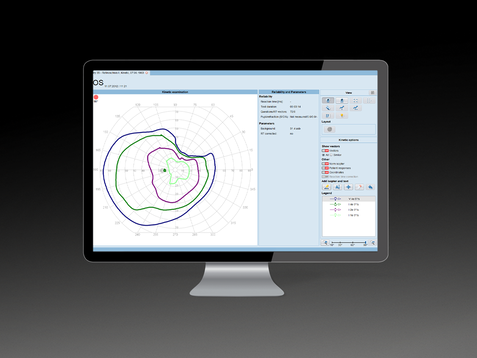

| Kinetic (manual and semi-automated) | ○ | ● |
| Test strategies | ||
| TOP Strategy (full threshold, 2-4 min) | ○ | ● |
| Custom test options | ||
| Free choice of stimulus size | ○ | ● |
| Free choice of stimulus locations | ○ | ● |
| Stimulus duration (ms) 100, 200, 500, 1000, infinite | ○ | ● |
| Stimulus color (Blue, red, white) | ○ | ● |
| Background color (White, yellow) | ○ | ● |
| Background illumination (asb) 0, 4, 31, 314 | ○ | ● |
| Analysis software | ||

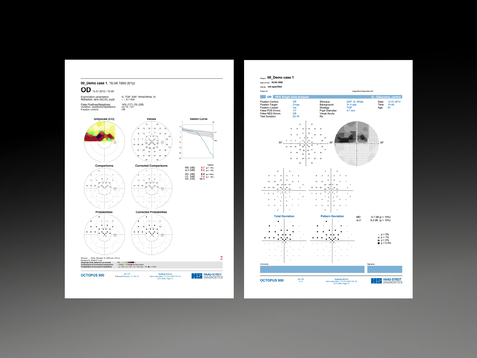

| Single field view (7-in-1, single eye, both eyes, user-defined, HFA-style) | ● | ● |
| Series view | ● | ● |

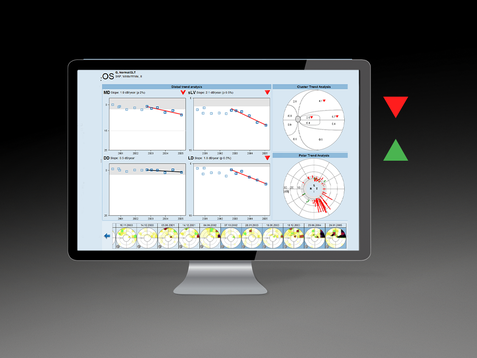

| Global progression (MD, sLV, DD, LD) | ● | ● |
| Cluster Trend | ○ | ● |
| Polar/Optic Nerve Head (ONH) Trend | ○ | ● |
| Special features | ||
| Motorized trial lens holder | ● | ● |
| Fovea threshold | ● | ● |
| Trial lens holder distance monitoring | ● | ● |
| Pupil measurement | ● | ● |
| Fixation Control | ● | ● |
| Accesorios | ||
| Customized spherical trial lenses (-11, -12 dpt) | ● | |
| PC | ||
| Pedriatric chinrest | ○ | ○ |
| External PC (Windows only) | − | ○ |
| Integrated PC (Linux embedded) | − | − |
| Networking | ||
| Integrated touch screen | ● | − |
| EMR, Ethernet | ○ | ● |
| DICOM | ● | ○ |
| Connect to network printer | ● | ● |
| Connect to shared folder | ● | ● |
| Connect to remote database | ● | ● |
| Data import | ||
| Octopus 101, 900, 123, 300 and 600 | ● | ● |
| HFA II | ● | ● |
| HFA III | ● | ● |
| Data export | ||
| Raw data for research | ○ | ● |
| Dimensions | ||
| Weight (kg / lbs) | 12.7 kg / 28 lbs | 12.7 kg / 28 lbs |
● standard | ○ optional | − not available | □ not recommended
