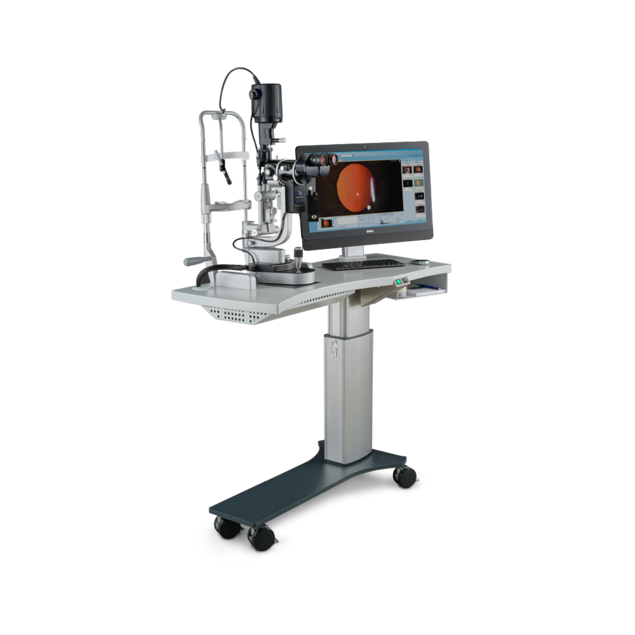

HSM 600
Puestos de trabajo ergonómicos

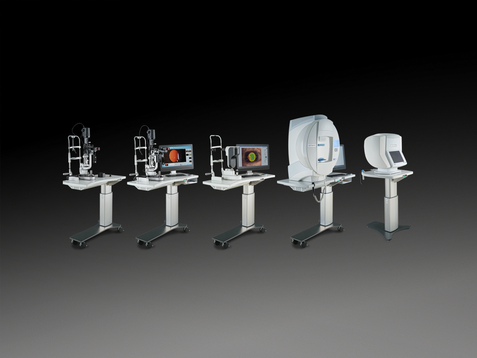

Hay una variedad de modelos de mesa, cada uno diseñado específicamente para el dispositivo correspondiente. Todos los modelos se caracterizan por su diseño ergonómico y facilidad de uso.
Mesas diseñadas ergonómicamente y construidas especialmente para proporcionar la plataforma ideal para nuestros dispositivos

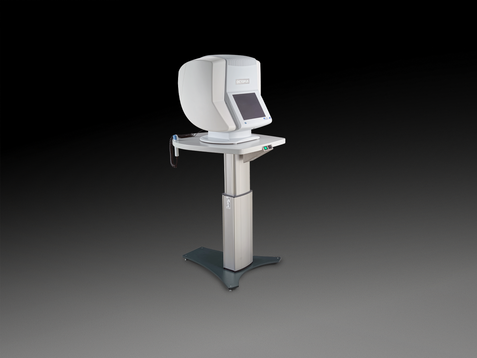

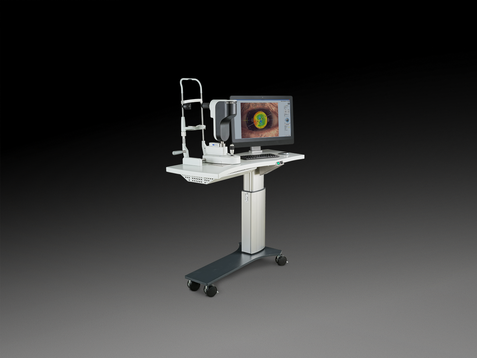

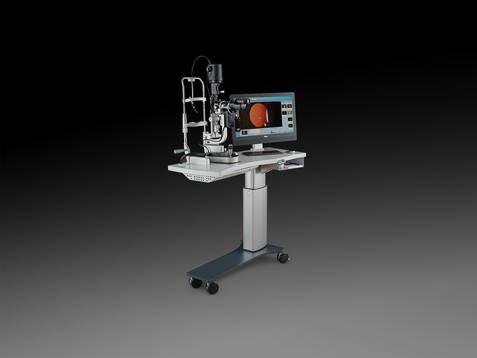

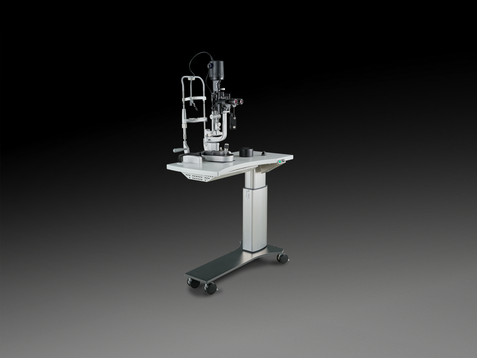

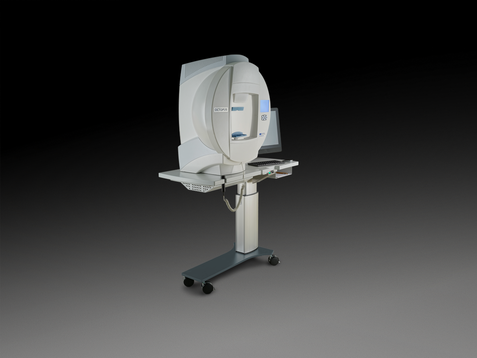

HSM 600 for Slit Lamp small | HSM 600 for Slit Lamp large | HSM 600 for BX 900 | HSM 600 for Octopus 600 | HSM 600 for Octopus 900 | HSM 600 for Lenstar | |
---|---|---|---|---|---|---|
Voltage | ||||||
230V or 120V | 120 or 230 | 120 or 230 | 120 or 230 | 120 or 230 | 120 or 230 | 120 or 230 |
Accesorios | ||||||
LAN cable through column | ○ | ○ | ○ | ○ | ○ | ○ |
Features | ||||||

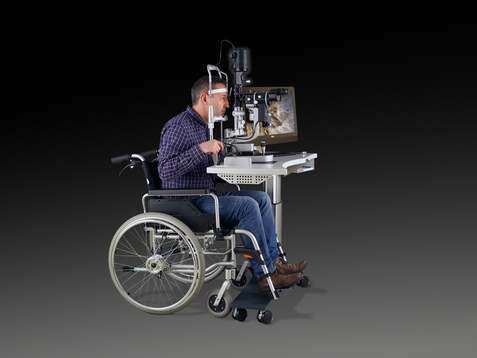

Wheelchair accessibility | ● | ● | ● | ● | ● | ● |
Storage shelf | ○ | ○ | ○ | ○ | ○ | ○ |
Bracket for PC | ○ | ○ | ○ | ○ | ○ | ○ |
Castors | ● | ● | ● | ● | ● | ● |
Dimensions | ||||||
Dimensions of tabletop (mm / inch) | 860 x 440 mm / 33.86 x 17.32 inches | 1150 x 440 mm / 45.27 x 17.32 inches | 1150 x 440 mm / 45.27 x 17.32 inches | 560 x 640 mm / 22 x 25.6 inches | 1080 x 480 mm / 42.52 x 18.9 inches | 1150 x 440 mm / 45.27 x 17.32 inches |
Height (min, max in mm / inch) | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches | 616 / 870 mm / 24.25 / 34.25 inches | 674 / 928 mm / 26.53 / 36.53 inches | 674 / 928 mm / 26.53 / 36.53 inches |
Weight (kg / lbs) | 48 kg / 105.82 lbs | 51 kg / 112.43 lbs | 53 kg / 116.85 lbs | 29 kg / 63.93 lbs | 57 kg / 125.66 lbs | 51 kg / 112.43 lbs |
Technical data | ||||||
Lifting capacity (kg / lbs) | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs | 50 kg / 110.23 lbs |
● standard | ○ optional | − not available | □ not recommended
